PT-1033V Tensile Testing Machine
Production information
PT-1033V
Computer Servo and Camera system tensile test machine
Computer Servo and Camera system tensile test machine
Product description
It is mainly designed for material testing with a capacity of less than 20,000kN. It can be used for tensile, compression, and bending tests. The power uses high torque and high-precision servo motors. Accuracy, combined with high rigidity and strength of the body structure, provides a quiet test environment and high-precision test results.
Applicable industry
Rubber, plastic, tape, textile, paper, film, electronics, metal, wood, packaging, medical, wire and other industries.Equipment Specifications
（表格可以拖曳）
| Model | PT-1033V-5T | PT-1033V-10T | PT-1033VL-10T |
| Load Capacity | 5000kg | 10000kg | 10000kg |
| Input | Load 2 set；2 point enlogation 1 set；USB connection | ||

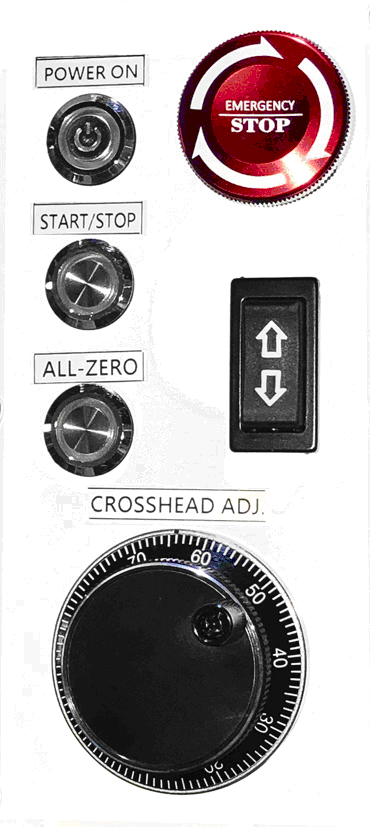

| Button | All zero ; Test Start ; Up &down Move ; Power ; EM-stop | ||
| Load Unit | kgf , LB , N ; gf | ||
| Load Resolution | 0.5 % 以下 | ||
| Force Resolution | 1／20,000 Max：1／200,000 | ||
| Graph | Auto | ||
| Displacement Res. | 0.0004mm | ||
| Max Stoke （uninclude Grip） |
1000mm | 1000mm | 1430mm |
| Effect test Width | 400mm or 500mm | ||
| Power | AC Servo Motor | ||
| Test Speed | 0.01 ~500mm／Minute, Computer Control. | ||
| Base part | USB-wire*1，software (English/Chinese/JP/España)*1 | ||
| Option | Protective door、Grip | ||
| PC Computer | WINDOWS 7／8／10 system | ||
| Size / Weight | 86（+13） × 60 × 200 cm W×D×H。 | 86（+13） × 60 × 200 cm W×D×H。 | 86（+13） × 60 × 200 cm W×D×H。 |
| Power | 1P，AC220V，50~60HZ，8A。 | ||
| Sctucture | Ball screw, timing belt, linear slider, aluminum alloy sealing plate, screw telescopic dust curtain, exquisite aluminum alloy cross bar | ||
| Paint | Imported car paint | ||
Report Demo
Software UI
