PT-1799VT Servo System Tensile Testing Machine
Production information
PT-1799VT Servo System Tensile and Computer Servo system tensile testing machine
Product description
It is mainly used for testing materials with a capacity of less than 20kN. It can be used for tensile, compression and bending tests. This power uses high torque and high precision servo motors. The combination of accuracy and high rigidity and strength of the body structure provides a quiet test environment and high-precision test results.Applicable industry
Rubber, plastic, tape, textile, paper, film, electronics, metal, wood, packaging, medical, wire and other industries.In addition to the simultaneous shooting during the test, tare and test start buttons are added. The reasonable price
and made in Taiwan.
and made in Taiwan.
Equipment Specifications
（表格可以拖曳）
| Model | PT-1799VT |
| Load Capacity | 1,2,5,10,20,50,100,200,500,1000,2000kgf |
| Input | Load 2 set；2 point enlogation 1 set；USB connection |
| button | All zero ; Test Start/Stop ; Up &down Move ; Power ; EM-stop ; Cross-Arm adj. |
| load Unit | kgf , LB , N ; gf........ |
| Load Resolution | Below 0.5 % |
| Force Resolution | 1／200,000 |
| Graph | Auto |
| displacement | 0.0004mm |
| Max Stoke （uninclude Grip） |
1000mm |
| effect test Width | 398mm |
| Power | AC Servo Motor |
| Test Speed | 0.01 ~1000mm／Minute, Computer Control. |
| base part | USB-wire*1，software (English/Chinese/GB/JP/España)*1 , Video Teaching |

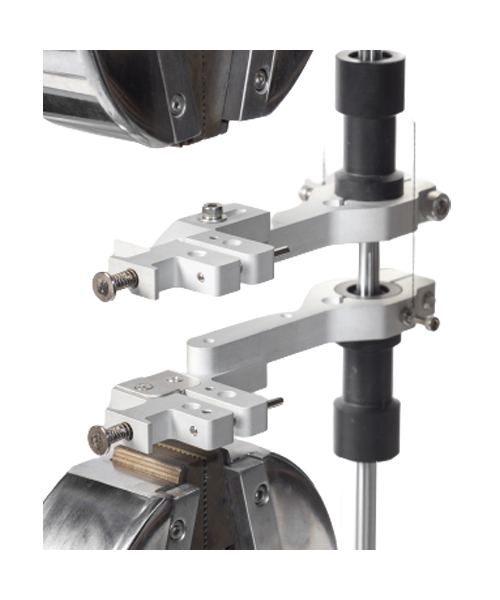

| option | Grip |
| PC Computer | WINDOWS 7／8／10 / 11 system |
| Size / Weight/Power | 76 × 63× 152cm ; 130kg ; 1P,AC220V 3A |
Sctucture |
Ball screw, timing belt, linear slider, aluminum alloy sealing plate, screw telescopic dust curtain, exquisite aluminum alloy cross bar |
| Paint | Imported paint |
Report Demo
Software UI
