PT-1799V
Production information

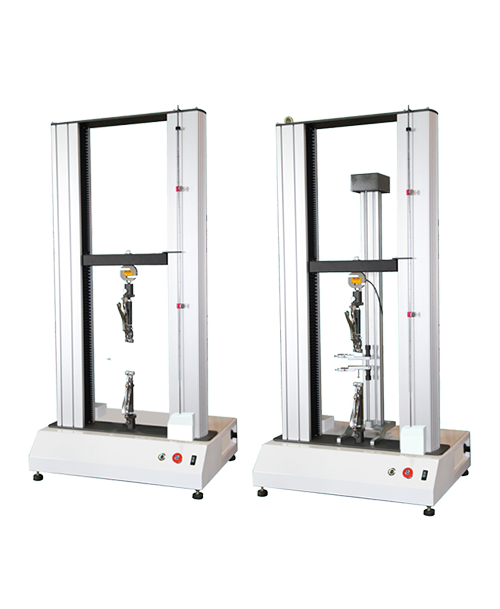

PT-1799V Servo System Tensile Test Machine
Tensile and Computer Servo and Camera system tensile test machine
Tensile and Computer Servo and Camera system tensile test machine
Product description
It is mainly used for testing materials with a capacity of less than 20kN. It can be used for tensile, compression and bending tests. This power uses high torque and high precision servo motors. The combination of accuracy and high rigidity and strength of the body structure provides a quiet test environment and high-precision test results.Applicable industry
Rubber, plastic, tape, textile, paper, film, electronics, metal, wood, packaging, medical, wire and other industries.In addition to the simultaneous shooting during the test, tare and test start buttons are added. The reasonable price
and made in Taiwan.
and made in Taiwan.
Equipment Specifications
（表格可以拖曳）
| Model | PT-1799V |
| Load Capacity | 1,2,5,10,20,50,100,200,500,1000,2000,3000 kgf |
| Input | Load 2 set；2 point enlogation 1 set；USB connection |
| button | All zero ; Test Start ; Up &down Move ; Power ; EM-stop |
| load Unit | kgf , LB , N ; gf........ |
| Load Resolution | Below 0.5 % |
| Force Resolution | 1／20,000 Max：1／200,000 |
| Graph | Auto |
| displacement | 0.0004mm |
| Max Stoke （uninclude Grip） |
1000mm |
| effect test Width | 398mm |
| Power | AC Servo Motor |
| Test Speed | 0.01 ~1000mm／Minute, Computer Control. |
| base part | USB-wire*1，software (English/Chinese/JP/España)*1 |
| option | Grip |
| PC Computer | WINDOWS 7／8／10 system |
| Size / Weight/Power | 76 × 57 × 152cm ; 130kg ; 1P,AC220V. |
Sctucture |
Ball screw, timing belt, linear slider, aluminum alloy sealing plate, screw telescopic dust curtain, exquisite aluminum alloy cross bar |
| Paint | Imported car paint |
| Freebee WEBCAM | |
Report Demo
Software UI
