PT-1690 Tensile Tester (option computer connection)
Production information
Introduction
The PT-1690 machine is suitable capacity range of 300gf, 600gf, 1, 2, 5, 10 ~200 kg for various materials of tensile; compression; bending; peel,constant tensile / constant compression / fatigue.... etc test.Machines is via USB(option) wire and control by computer, through step motor operation and begin the test, after test is completed will automatically return to the origin, and software with WINDOWS 10 operating system to direct printing.
OPTION COMPUTER SYSTEM
Quick Install Grip
Feature
- A variety of force units and the parameters of the test conditions and the parameters of test results report.
- The user can set the report format and contents of the report of the test results.
- Step motor system
- High-precision force sensor
- Bearings use made in Japan components.
- Fine aluminum screw cover.
- Surface precision plating and high class coating paint.
- Fast connect head of gripper.
- Timing belt, timing belt pulley.
- Ball screw, made in Taiwan components.HIWIN
- Multi-force linear correction system, main controller use made in Italy components.
- Safety protect include: Up & down limit safety setting restrainer , emergency stop button, strength and elongation program setting(COMPUTER SYSTEM), and break point sensing of specimen.
Specifications
（表格可以拖曳）
| Model No. | PT-1699V(T) |
| Capacity | 300gf, 600gf, 1, 2, 5, 10, 20, 50, 100, 200 kgf option any one. |
| Input Port | Load cell of 1 groups input; power input; USB connection input(OPTION). |
| Various Button Switch | Main power switch with lights and a fuse; power switch with lights; emergency stop button; rise and down switch; upper and lower limit restrainer; displacement pointer and scale. |
| Unit Switch | kgf , LB , N ; gf |
| Loading Precision | Under 0.5% of Full loading cell. |
| Strength Resolution | 1/50,000 (OPTION 1/200,000 MAX COMPUTER SYSTEM) |
| Strength Enlarges Time Rate | Single-stage automatic enlarge(COMPUTER SYSTEM). |
| Displacement Resolution | 0.005mm by machine |
| Maximum Test Stroke | 700mm, include griper’s length. |
| Distance from the center of gripers to the rear screw | 70mm |
| Motor | AC servo motor. |
| Test speed | 0.5 ~ 600mm/min, |
| Speed precision | ±1% of Full Scale. |
| Dimensions | W35 × D48× 117 cm. |
| Weight | 45 kg. |
| Power | 1P, AC220V, 2A, 50~60HZ. OR 110V |
| cOMPUTER SYSTEM(OPTION) | USB Signal line x 1 and Computer program software x 1.MUSD DECORD MAIN BOARD) |
| Option Purchase | Any kinds of test griper or fixture. |
OPTION (COMPUTER SYSTEM)
Print

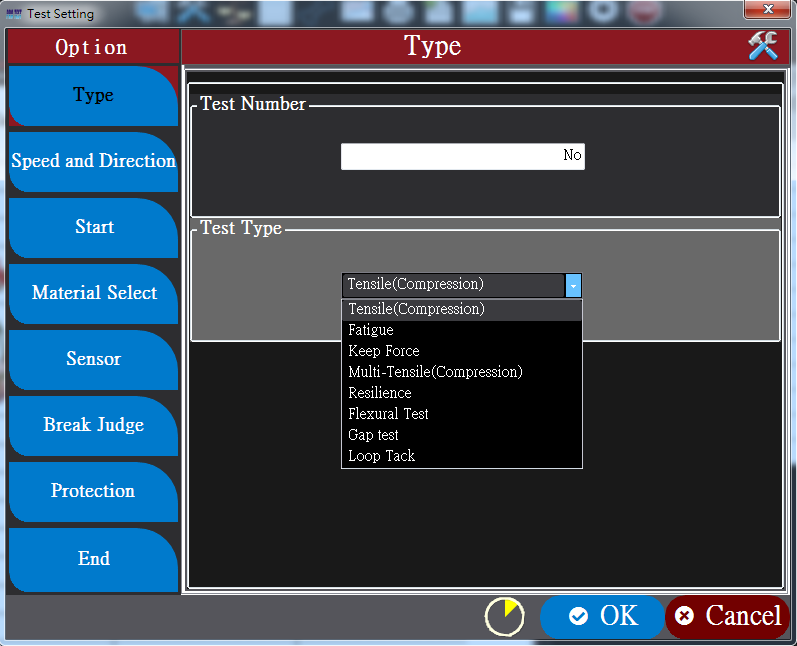

Software UI
